● 3 1/2 digits 1999 count
● Extra high capacity 2000A & 1000V & 2000KΩ measurement
● Data hold to capture measurements
● Backlight display is easy to read under any light condition
● DC voltage measurement up to 1000V
● AC voltage measurement up to 750V
● AC current measurement up to 2000A
● Resistance measurement up to 2000KΩ

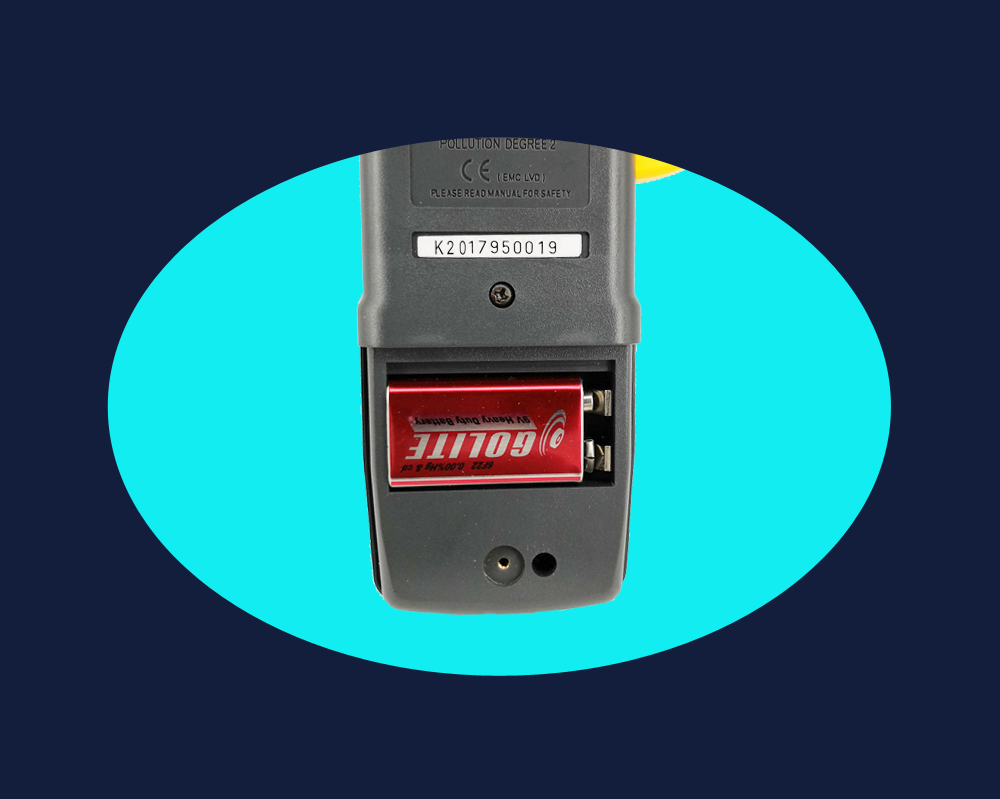

● Accessories included: 9V battery, carrying case, test leads, English manual, gift box
SPECIFICATIONS
Jaw opening 58mm
DC Voltage 1000V ±(1.0%+5d)
AC Voltage 750V ±(1.0%+25d)
AC Current 20/200/2000A ±(2.5%+10d)
Capacitance 20μF ±(5.0%+5d)
Resistance 2000/2000KΩ ±(1.0%+5d)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Dimensions 280x100x42mm
Weight Approx. 520g included battery
Measurement Category EN61010-1,CAT III,600V; CATII,1000V
In the measurement, only by clamping a single wire in the circuit being measured will get the current.When holding the wire, in order to minimize the displacement error always place the conductor at the center of the clamping head.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
