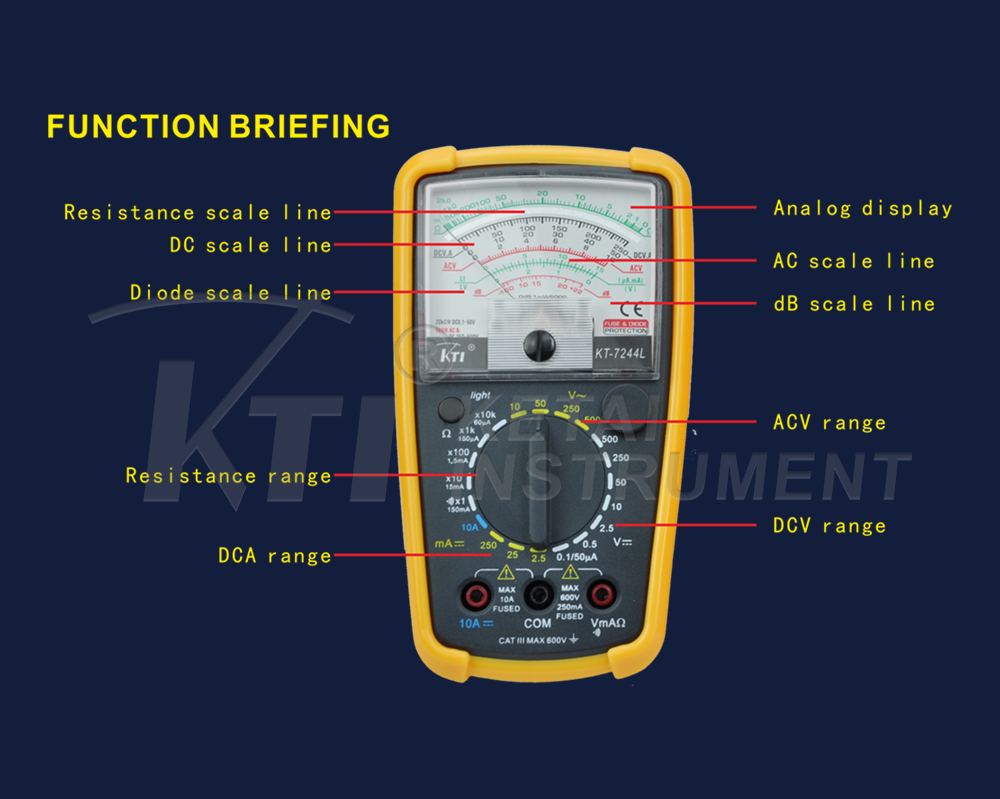

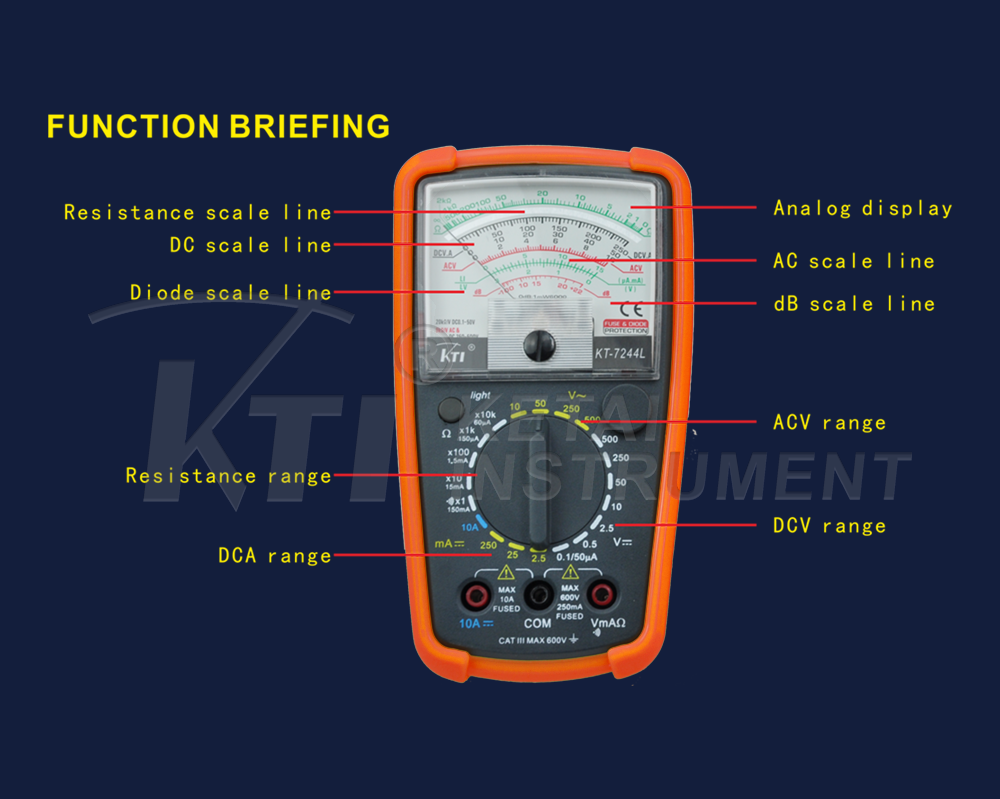

● 20 ranges in 6 functions
● Overload protection
● AC/DC voltage measurement up to 500V
● DC current measurement up to 10A
● Resistance measurement up to 20MΩ
● Audible continuity & diode tests
● LED test
● Input impedence: 20KΩ/ VDC,9KΩ/ VAC

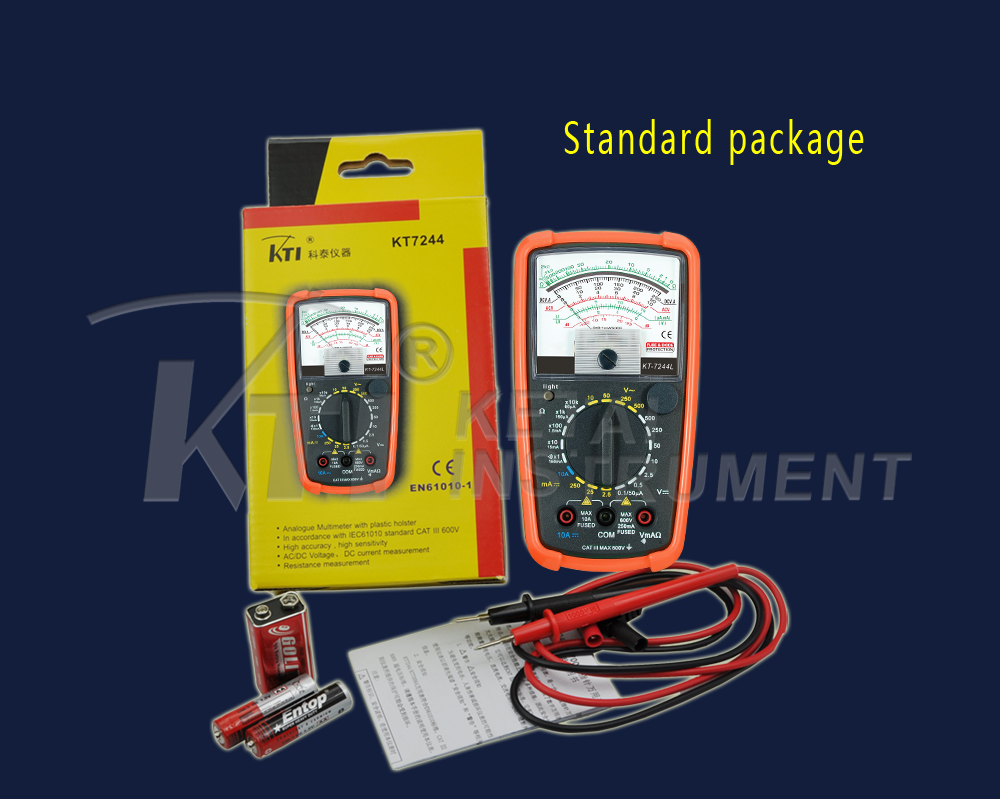

● Accessories included: 1.5V & 9V battery, elastomer boot, test leads, English manual, gift box
SPECIFICATIONS
DC Voltage 0.1/0.5/2.5/10/50/250/500V (±3.0% f.s)
AC Voltage 10/50/250/500V (±4.0% f.s)
DC Current 0.05m/2.5m/25m/250m/10A (±3.0% f.s)
Resistance 2K/20K/200K/2M/20MΩ (±3.0% of full arc)
Continuity test approx. 0⋯30Ω
dB measurement: -10~56 (0dB 1mW/600Ω)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Dimensions 162x86x36mm
Weight Approx. 320g included battery
Measurement Category EN61010-1,CAT III,600V

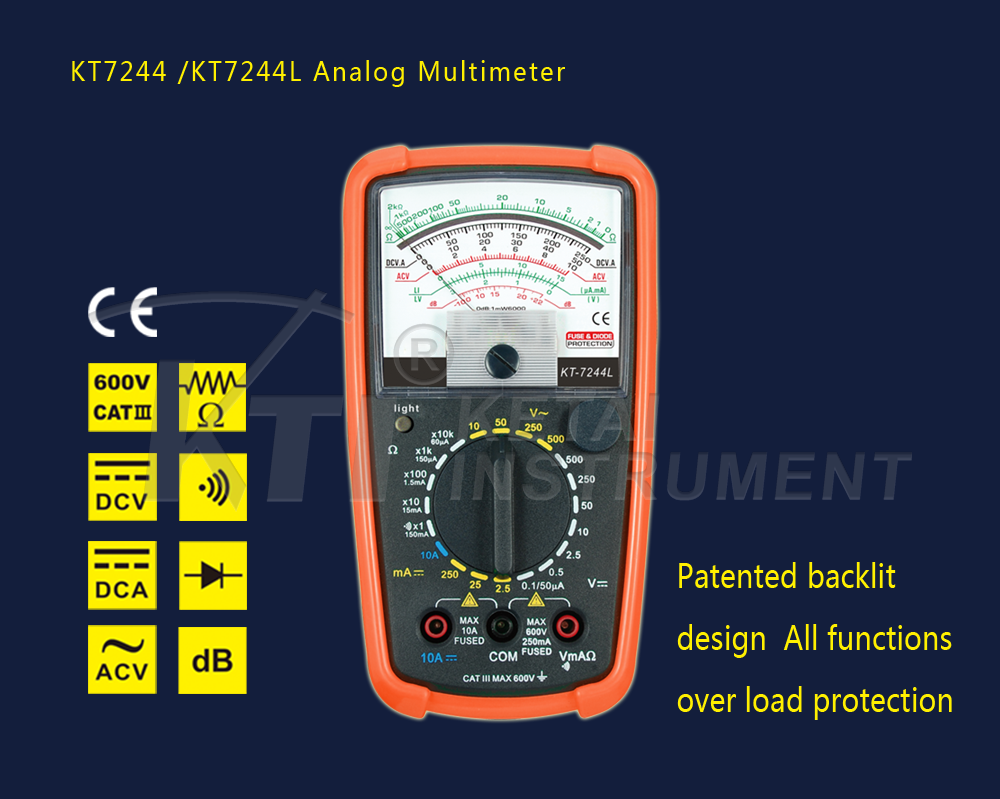

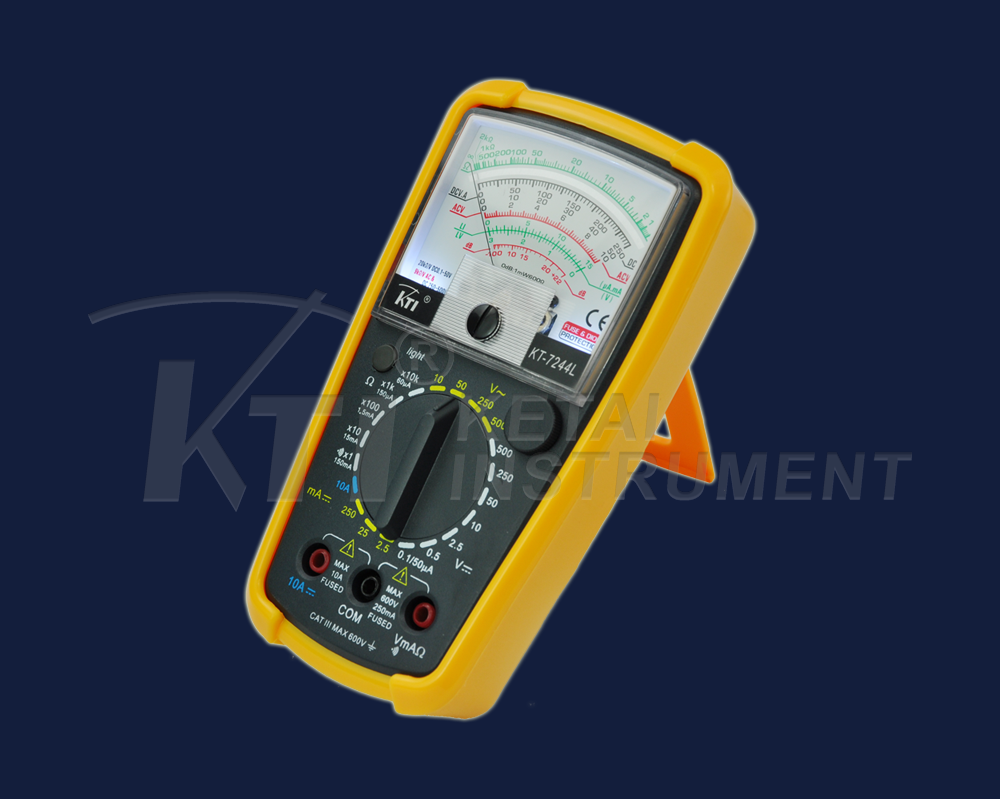

This product is a highly sensitive and accurate analog multimeter.
Please refer to user's manual before operating for safety reason or faulty use.

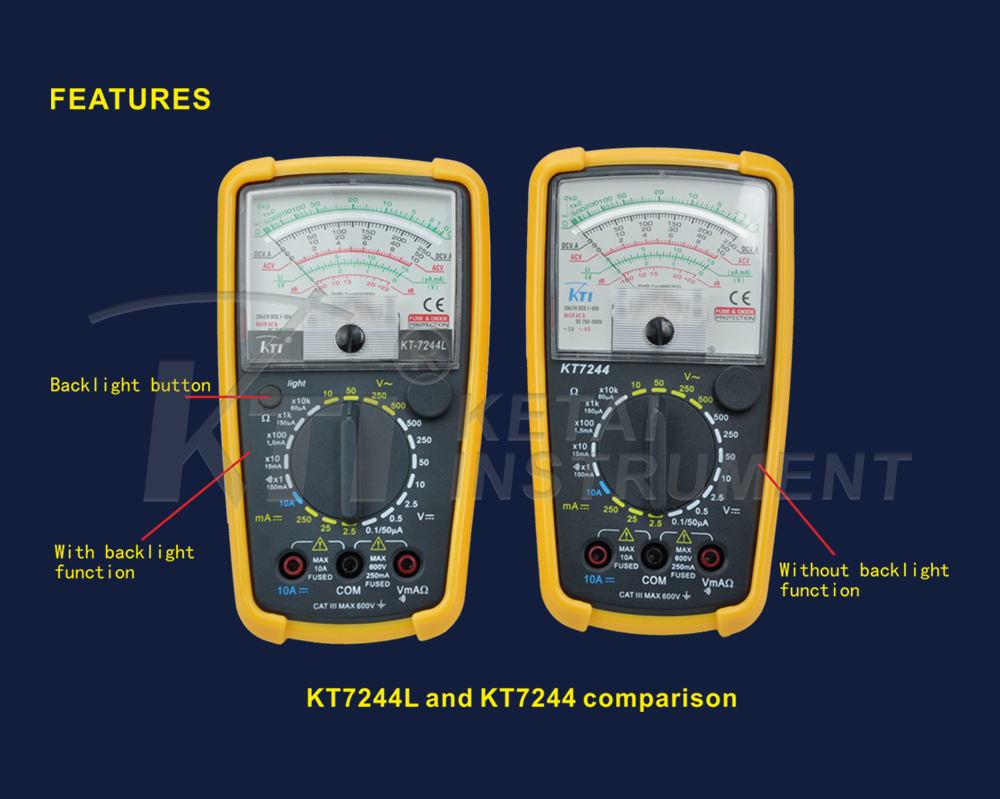

The backlight function will consume more battery power, the light will be automatically turned off in 15 seconds.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
