● 20 ranges in 5 functions
● AC/DC voltage measurement up to 500V
● DC current measurement up to 10A
● Resistance measurement up to 200MΩ
● Audible continuity & diode tests
● Accessories included: 1.5V battery, test leads, English manual, gift box
SPECIFICATIONS
DC Voltage 0.1/2.5/10/50/250/500V (±3.0% f.s )
AC Voltage 10/50/250/500V (±4.0% f.s )
DC Current 50μ/5m/50m/500m/10A (±3.0% f.s )
Resistance 2K/20K/200K/2M/200MΩ (±3.0% of full arc )
dB measurement: -10~62 (0dB 1mW/600Ω)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Dimensions 158x105x41mm
Weight Approx. 370g included battery
Measurement Category EN61010-1,CAT III,600V

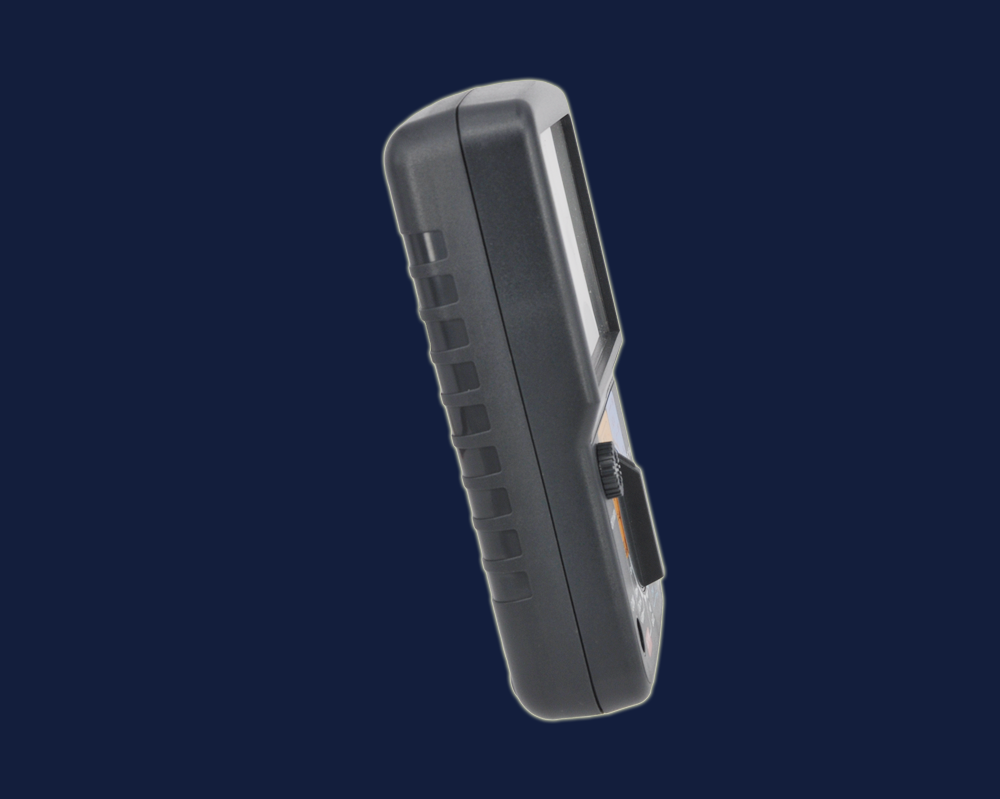

This product is a highly sensitive and accurate analog multimeter.
Please refer to user's manual before operating for safety reason or faulty use.
If there is any doubt or question in usage, user can consult the manufacturer for help.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
