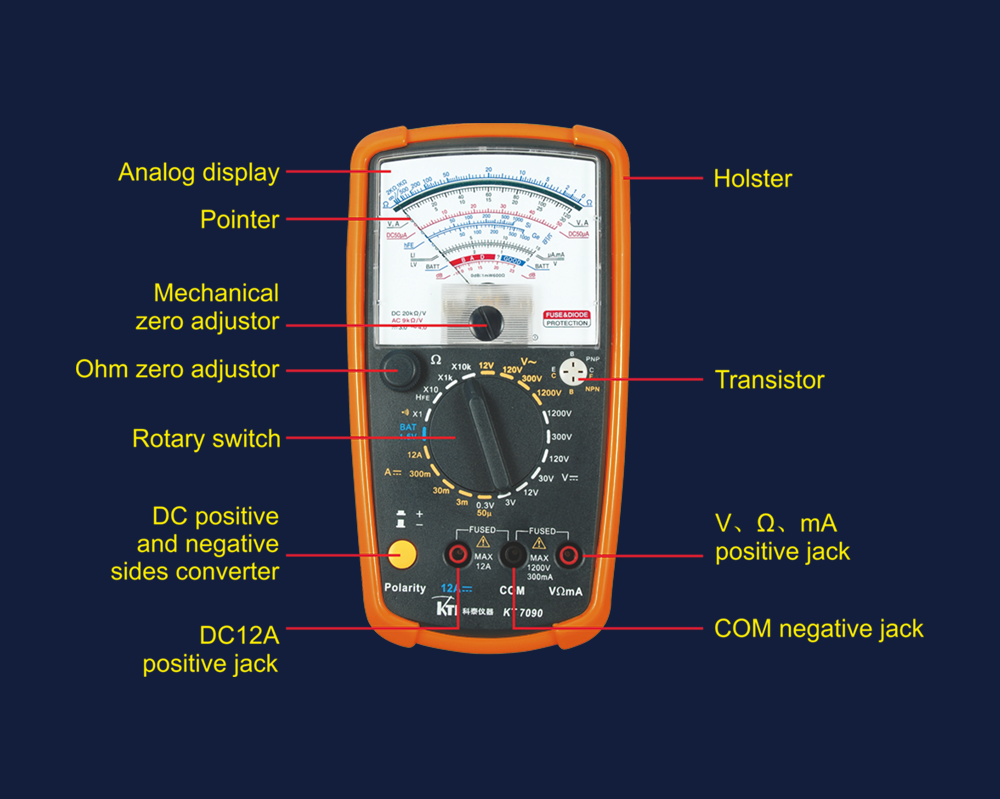

● Large display with mirror scale for accurate reading
● 20 ranges in 7 functions
● Overload protection
● Transistor and diode tests

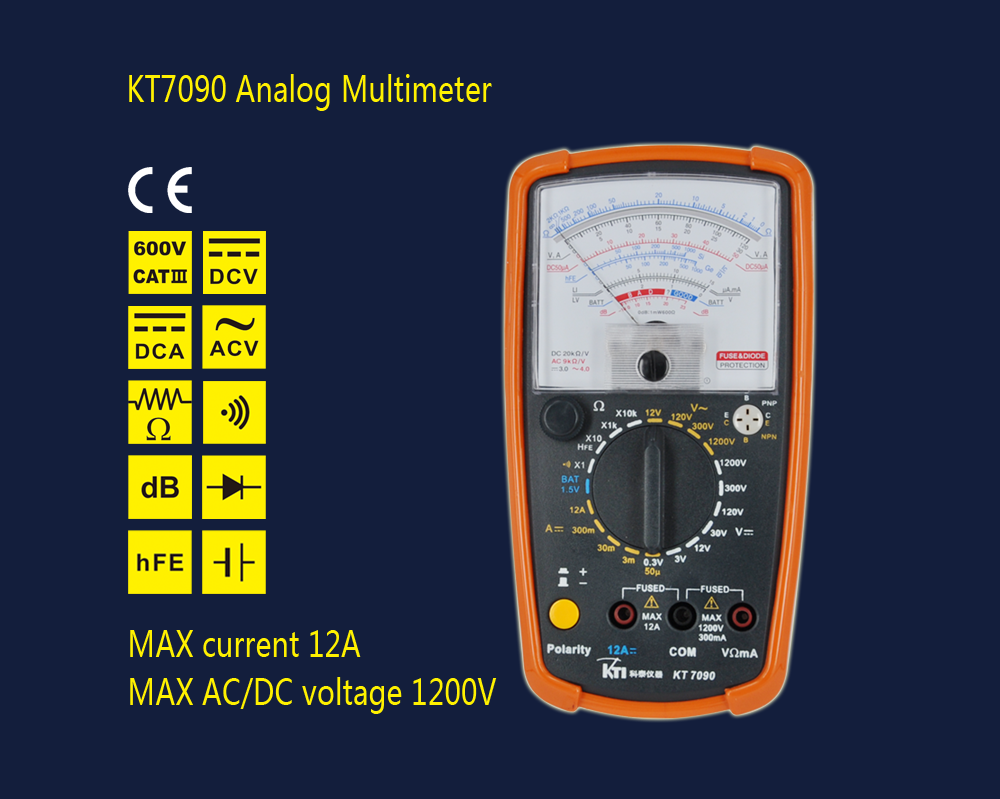

● AC/DC voltage measurement up to 1200V
● DC current measurement up to 12A
● Resistance measurement up to 20MΩ
● Battery test 1.5V
● Input impedence: 9KΩ/ VAC, 20KΩ/ VDC

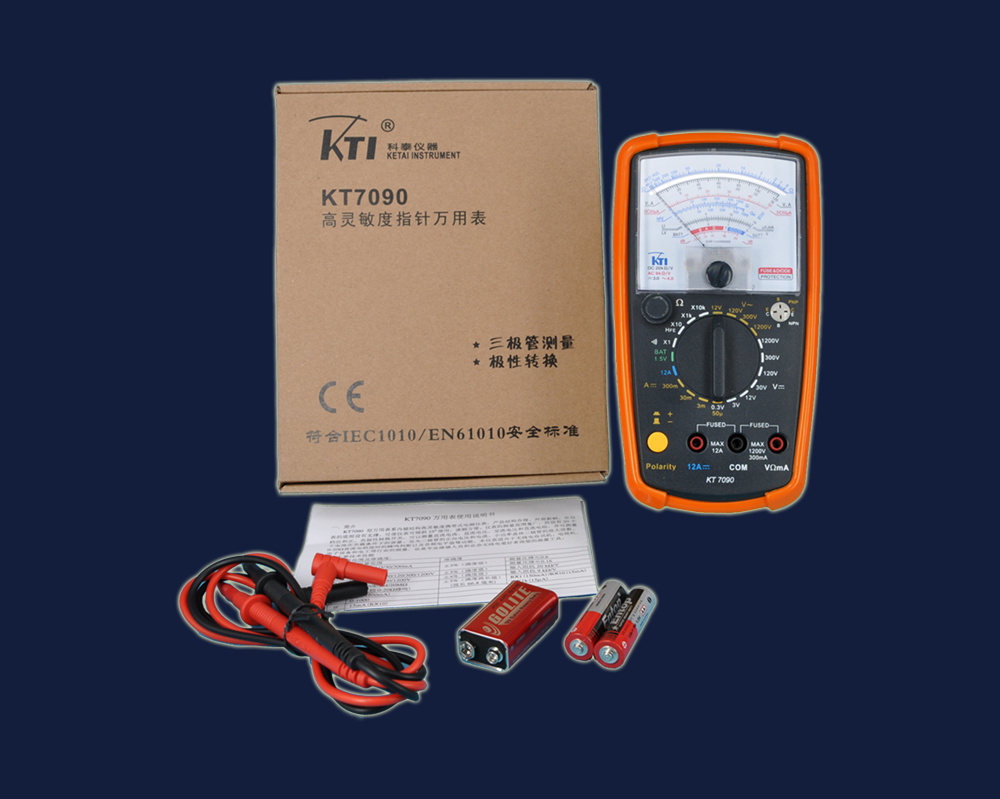

● Accessories included: 1.5V & 9V battery, elastomer boot, test leads, English manual, gift box
SPECIFICATIONS
DC Voltage 0.3/3/12/30/120/300/1200V (±3.0% f.s)
AC Voltage 12/120/300/1200V (±4.0% f.s)
DC Current 50μ/3m/30m/300m/12A (±3.0% f.s)
Resistance 2K/20K/2M/20MΩ (±3.0% of full arc)
Audion test 0~1000
Continuity test 0⋯approx. 20Ω
dB measurement: -10~63 (0dB 1mW/600Ω)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Dimensions 180x92x48mm
Weight Approx. 320g included battery
Measurement Category EN61010-1,CAT III,600V
This product is a highly sensitive and accurate analog multimeter.
Please refer to user's manual before operating for safety reason or faulty use.
If there is any doubt or question in usage, user can consult the manufacturer for help.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
